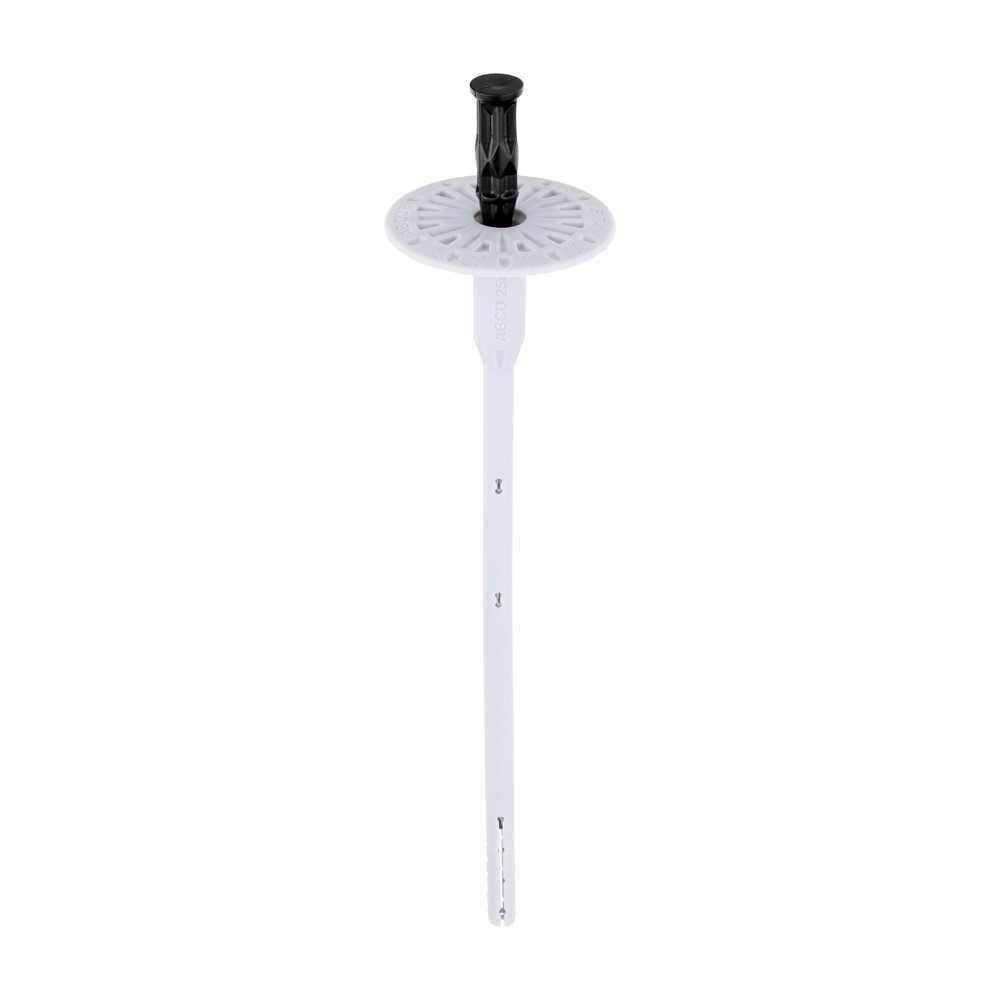

Ziel-Plast ETX-M Insulation Fixing 215mm — Heavy-Duty ETICS Anchor

With extended travel for deep systems, the 215mm length maintains embedment and a tidy surface profile on multi-layer build-ups. The Ziel-Plast ETX-M Insulation Fixing 215mm from TIMCO spreads face loads evenly with its plate head.

Product Overview

  • Useful on tall facades and higher wind-load areas where consistent plane control is required.
  • Hammer-in action supports a predictable site rhythm and clear head seating.

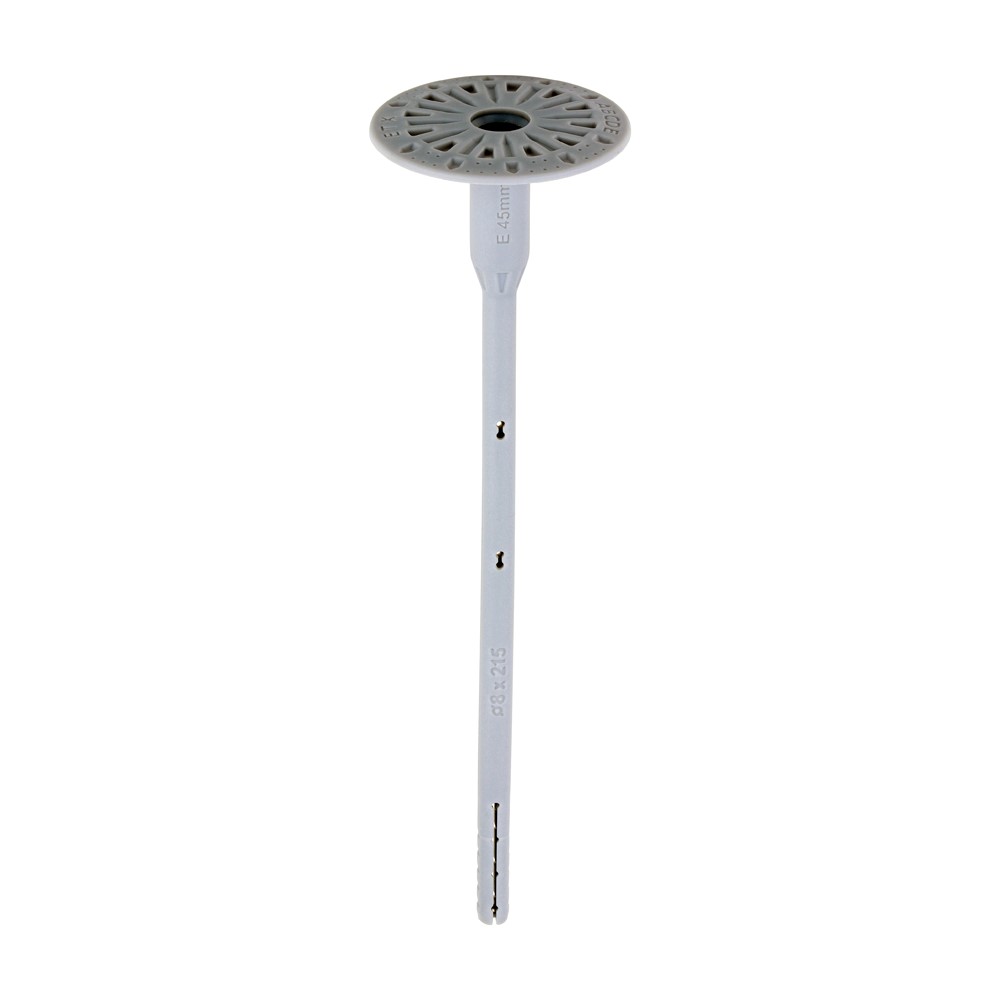

  • 60mm plate head helps protect board skins and supports clean lines around reveals.
  • Allows for depth variance from adhesive beds while preserving embedment targets.
  • Integrates with common ETICS patterns and perimeter densification where needed.

Product Features

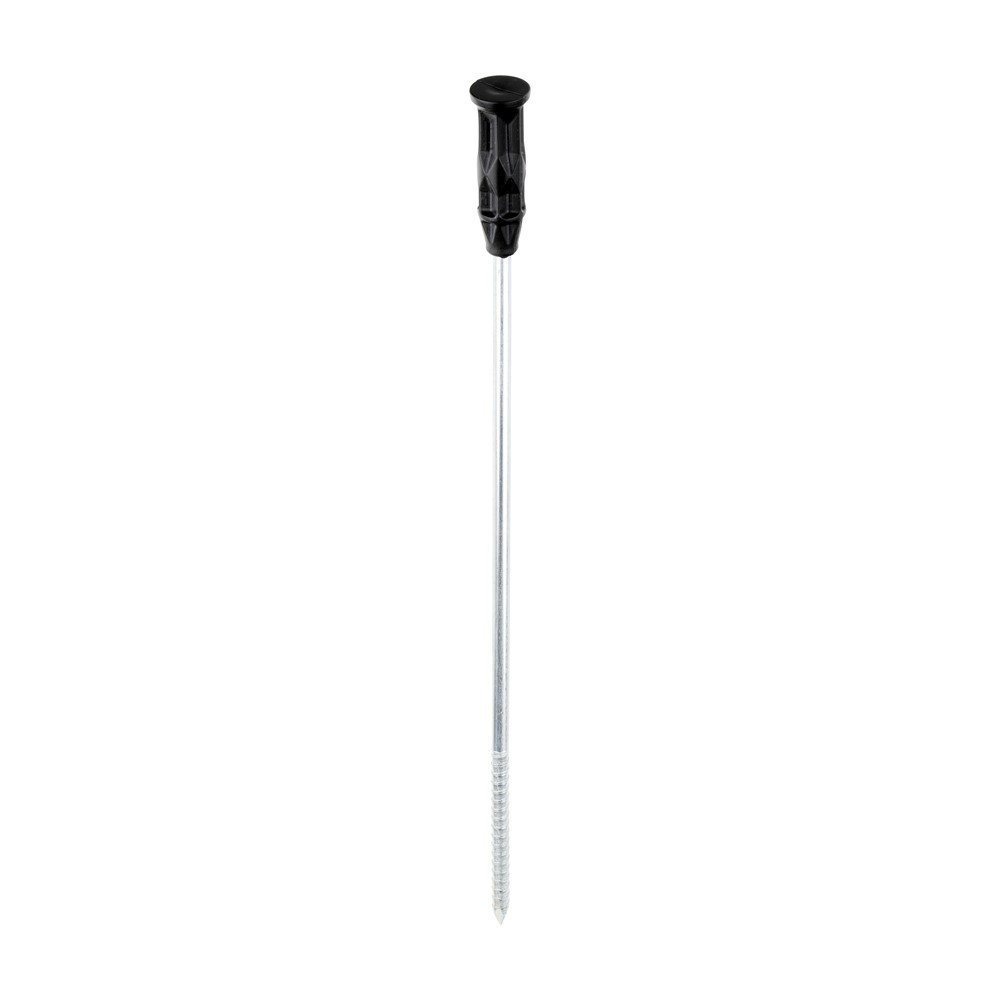

  • Steel pin with insulating PP sleeve combines dependable holding with reduced thermal bridging.
  • Controlled expansion supports reliable engagement in sound masonry substrates.
  • Broad head distributes pressure to limit face marking on rigid or laminated boards.
  • TDW110 washer compatible where a wider bearing area is specified.
  • Positive head stop assists flush, repeatable seating across large runs.
  • Material pairing selected for stable performance under typical facade conditions.

Specifications

  • Length: 215mm
  • Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete, Brick, Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Diameter: 60mm
  • Colour: White
  • Drill Hole Diameter: 8mm
  • Thread Diameter: 8mm
  • Product Code: EM215
  • Brand: TIMCO

Why Choose Ziel-Plast ETX-M?

The 215mm length is well-suited to deep, multi-layer systems and perimeter zones. It provides the extra travel needed to preserve embedment while keeping surfaces even.




EAN Code: 5907812671211

  • Length mm: 215
  • Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete Brick Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Dia. mm: 60
  • Colour: White
  • Drill Hole Dia. mm: 8
  • Thread Dia. mm: 8
