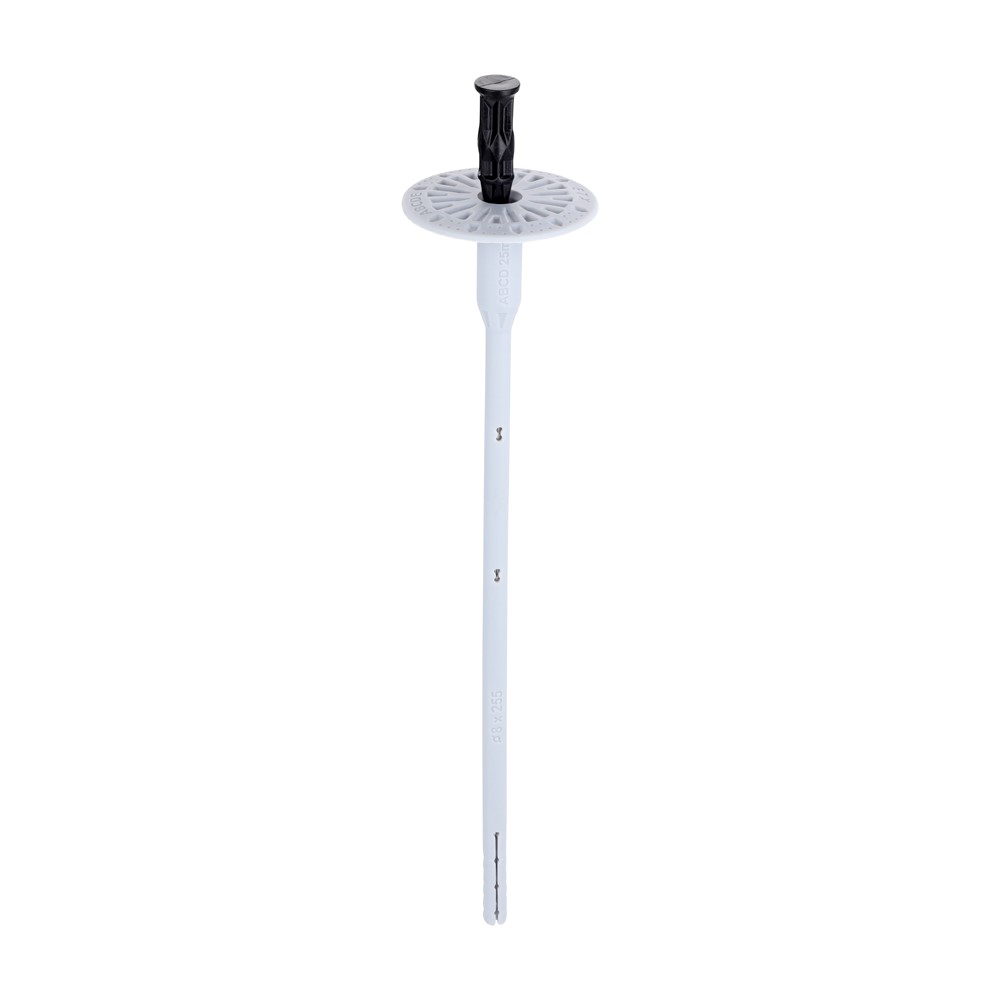

ETX-M Insulation Fixing 8.0 x 255mm

Ziel-Plast ETX-M Insulation Fixing 255mm — Heavy-Duty ETICS Anchor

Built for maximum insulation depths in this range, the 255mm option gives the reach needed to cross substantial board stacks. The Ziel-Plast ETX-M Insulation Fixing 255mm from TIMCO helps maintain a uniform, render-ready surface.

Product Overview

• Targets very deep build-ups and exposed elevations requiring consistent plane control.
• Hammer-in approach maintains pace over large grids with a clear head stop.

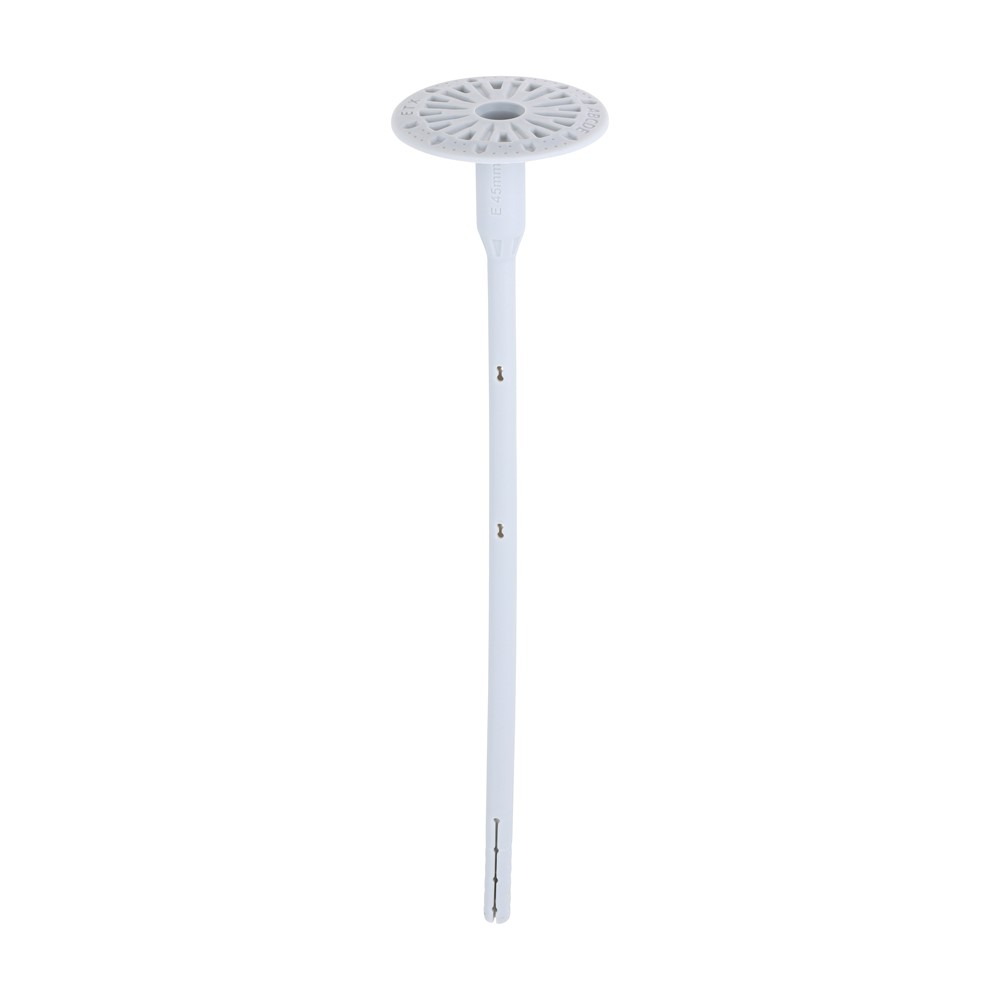

• 60mm plate head supports smooth surface transitions around joints and corners.
• Accommodates thickness variance from adhesives and coatings to retain embedment.
• Integrates with ETICS fixing patterns and perimeter densification where specified.

Product Features

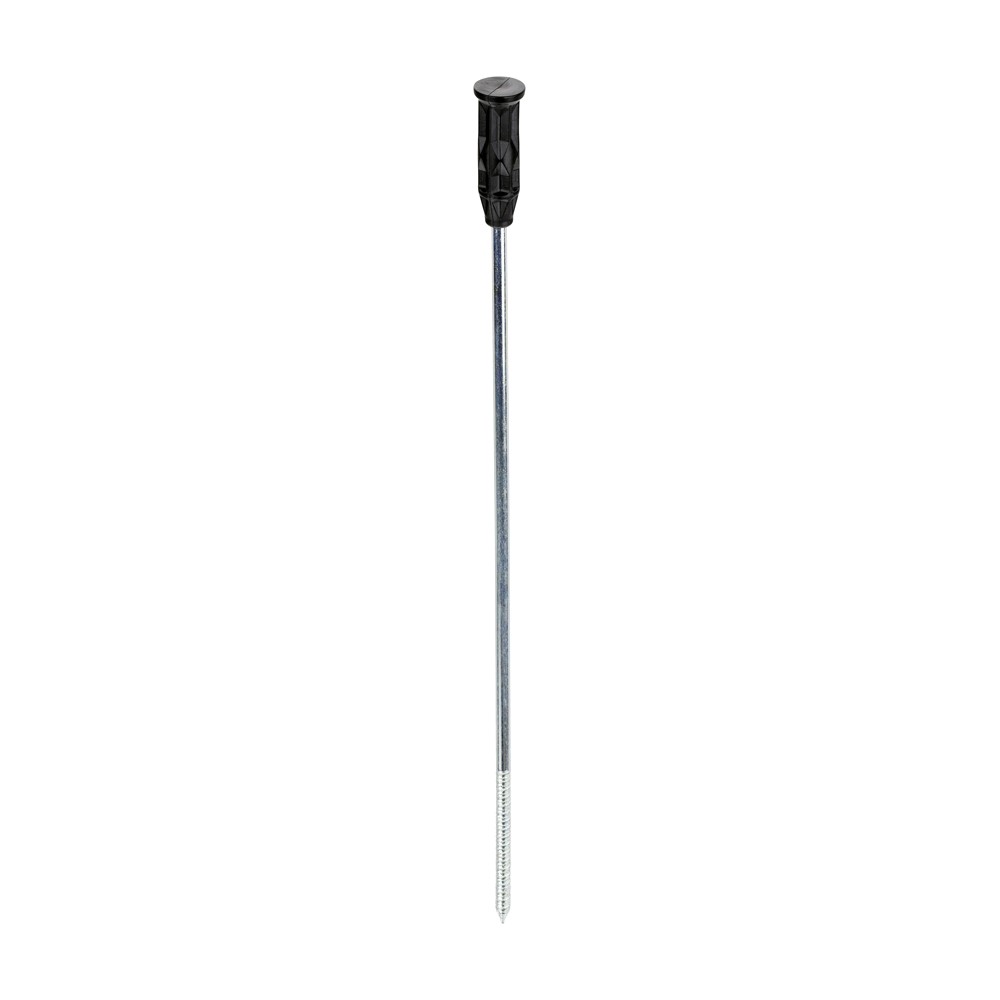

• PP sleeve and galvanised steel pin combine to balance thermal behaviour and holding strength.
• Expansion profile promotes reliable engagement in sound masonry substrates.
• Broad head distributes load to reduce face indentation on rigid boards.
• TDW110 washer compatible where wider bearing is required by design.
• Positive seating aids flush, repeatable set-down across large panel areas.
• Components selected for durable, stable performance under facade conditions.

Specifications

• Length: 255mm
• Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
• Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
• CE Standard: CE Marked
• Substrates: Concrete, Brick, Block
• Brand: Ziel-Plast
• MOQ: 1
• Pack Type: Box
• Pack Quantity: 100
• Head Diameter: 60mm
• Colour: White
• Drill Hole Diameter: 8mm
• Thread Diameter: 8mm
• Product Code: EM255
• Brand: TIMCO

Why Choose Ziel-Plast ETX-M?

Use 255mm where multi-layer boards and coatings create substantial depth. It helps retain embedment and a straight facade plane across demanding sections.
