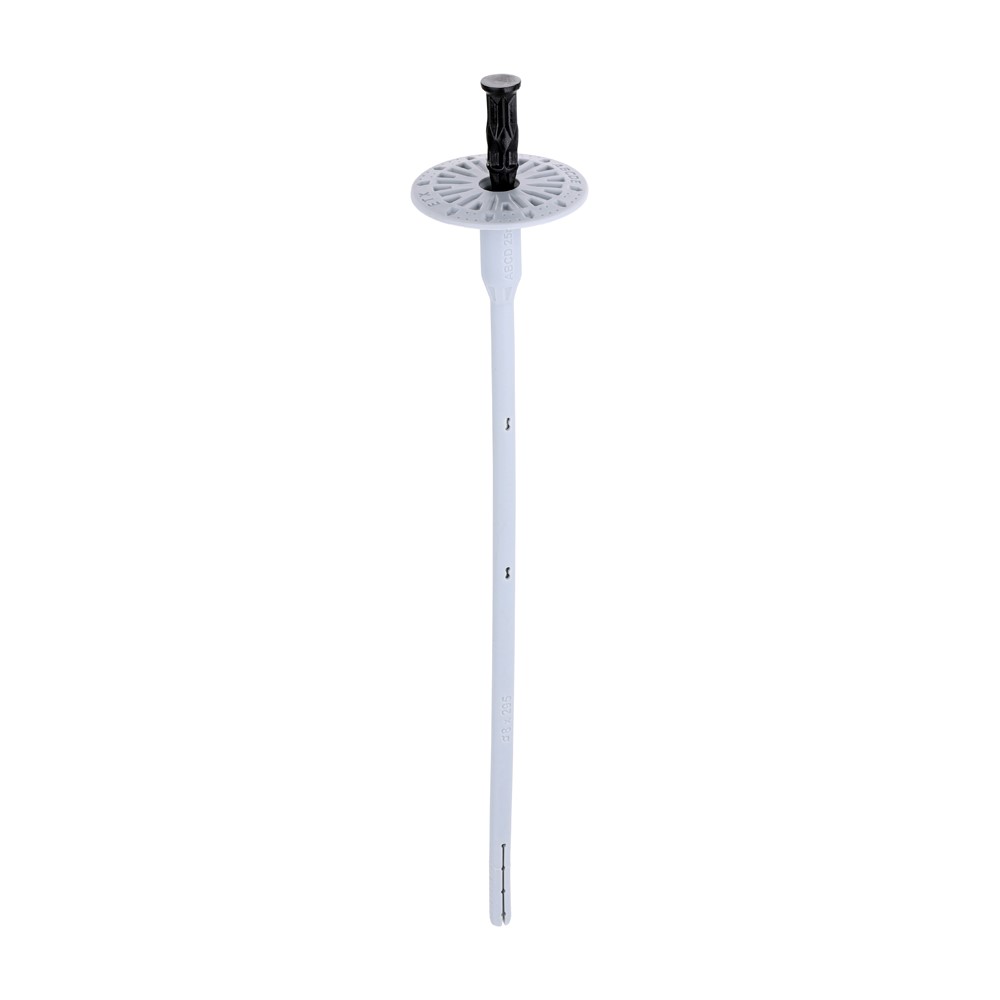

ETX-M Insulation Fixing 8.0 x 295mm

Ziel-Plast ETX-M Insulation Fixing 295mm — Heavy-Duty ETICS Anchor

At the upper end of the range, the 295mm option provides maximum travel to achieve embedment across exceptionally deep assemblies. The Ziel-Plast ETX-M Insulation Fixing 295mm by TIMCO helps keep surfaces uniform on exposed elevations.

Product Overview

• Targets extreme build-ups and high wind-load areas on tall facades.
• Hammer-in action supports steady progress and consistent head seating over large grids.

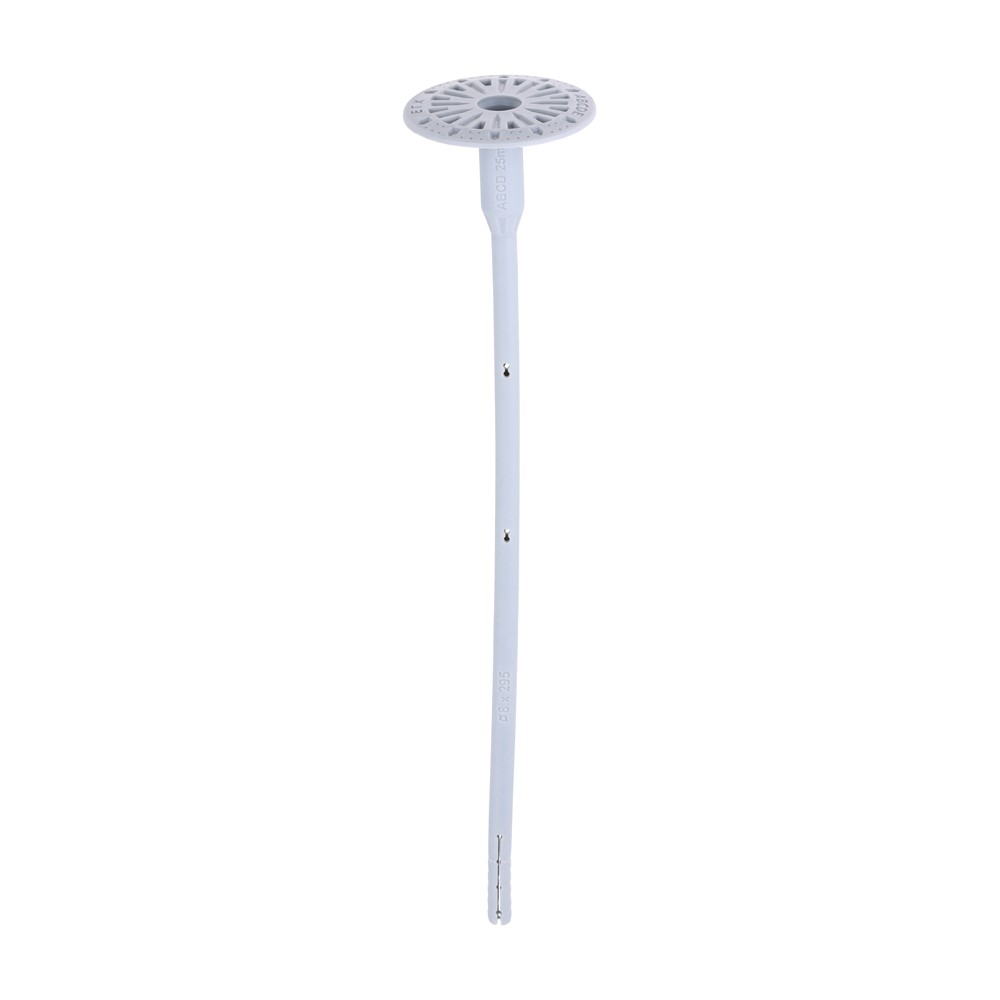

• 60mm plate head promotes a clean surface profile around joints and openings.
• Accommodates depth variance from adhesives and coatings to retain embedment targets.
• Fits within ETICS fixing patterns and perimeter densification where specified.

Product Features

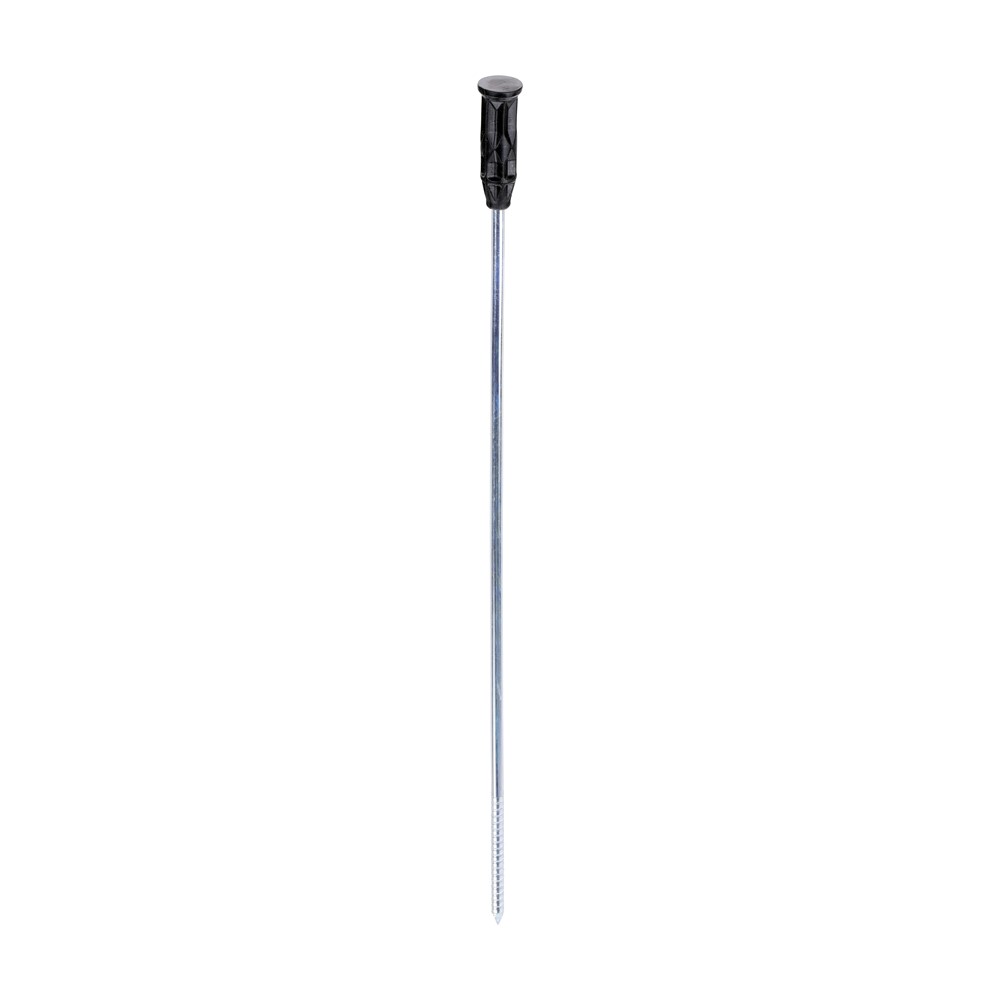

• Steel drive pin and PP sleeve deliver robust anchorage with reduced thermal bridging along the fixing path.
• Expansion design tuned for reliable engagement in sound concrete, brick, and block substrates.
• Broad plate head spreads load to help limit surface indentation on rigid boards.
• TDW110 washer compatible where wider bearing is called for by the specification.
• Defined head stop assists flush, repeatable set-down across tall, exposed elevations.
• Durable materials chosen for stable, long-term facade performance.

Specifications

• Length: 295mm
• Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
• Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
• CE Standard: CE Marked
• Substrates: Concrete, Brick, Block
• Brand: Ziel-Plast
• MOQ: 1
• Pack Type: Box
• Pack Quantity: 100
• Head Diameter: 60mm
• Colour: White
• Drill Hole Diameter: 8mm
• Thread Diameter: 8mm
• Product Code: EM295
• Brand: TIMCO

Why Choose Ziel-Plast ETX-M?

Choose 295mm when assemblies are at maximum depth and plane consistency is critical. It maintains embedment and supports an even finish on tall, exposed facades.
