PA100 FIX-PA Insulation Fixing 10.0 x 100mm
Mobile Menu Icon

FIX-PA Insulation Fixing 10.0 x 100mm

£15.33per Box £18.40 inc VAT
TIMCO Logo
Size

Size

Length

Qty:
- +
200 In Stock
Product Code: PA100
Brand: TIMCO

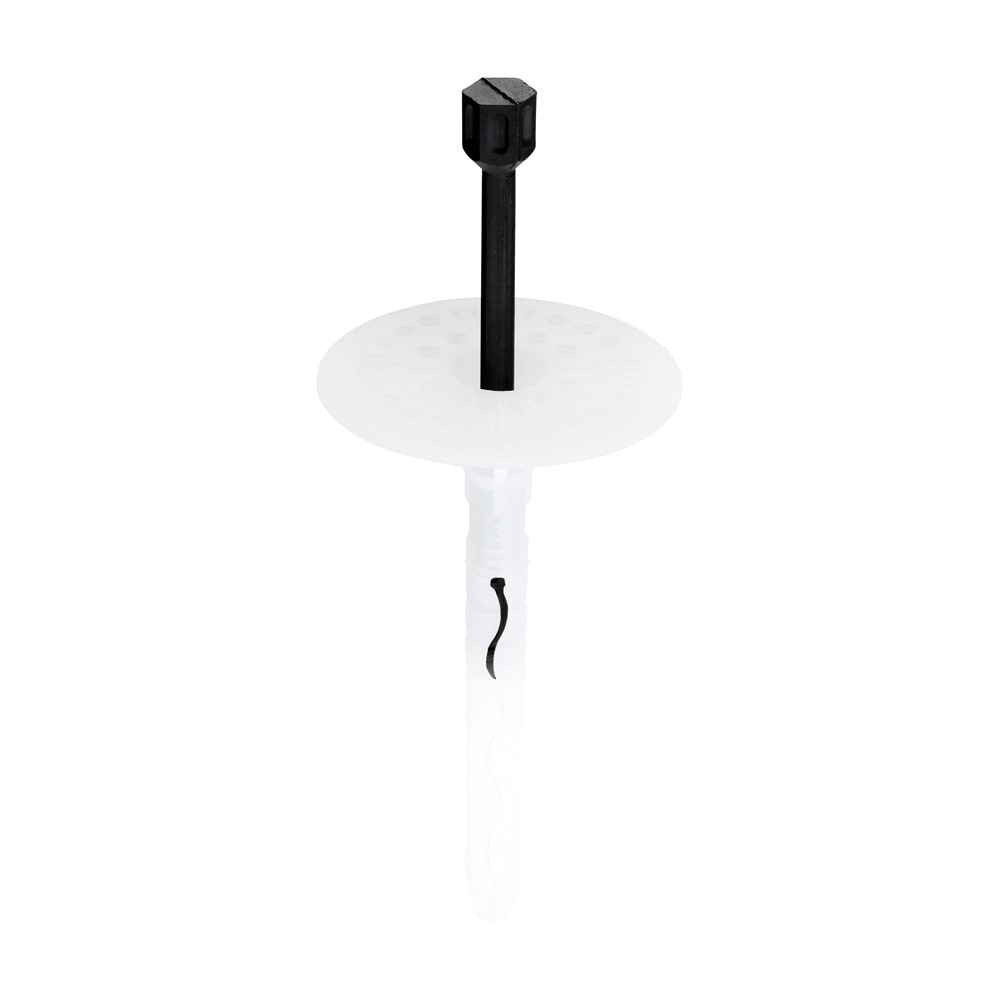

Ziel-Plast FIX-PA Insulation Fixing 100mm — Heavy-Duty ETICS Anchor

The Ziel-Plast FIX-PA Insulation Fixing 100mm from TIMCO is a dependable solution for securing insulation boards to masonry and concrete in ETICS applications. Its quick, clean hammer-in installation helps reduce labour time, while the corrosion-resistant polyamide pin supports consistent fixing strength. Designed for slimmer build-ups, it provides reliable hold in solid wall materials and suits lightweight through standard-thickness insulation panels—helping installers achieve a tidy, render-ready surface with minimal fuss.

Product Overview

  • Optimised for thinner insulation layers and tight fixing grids on refits and small elevations.
  • Predictable hammer-in workflow with a defined head stop to maintain site pace.
  • Low-profile plate head assists neat alignment around joints, reveals, and corners.
  • Accommodates minor thickness variation from boards and adhesive beds to preserve the facade plane.
  • Works with typical ETICS fixing layouts and perimeter/corner density adjustments.

Product Features

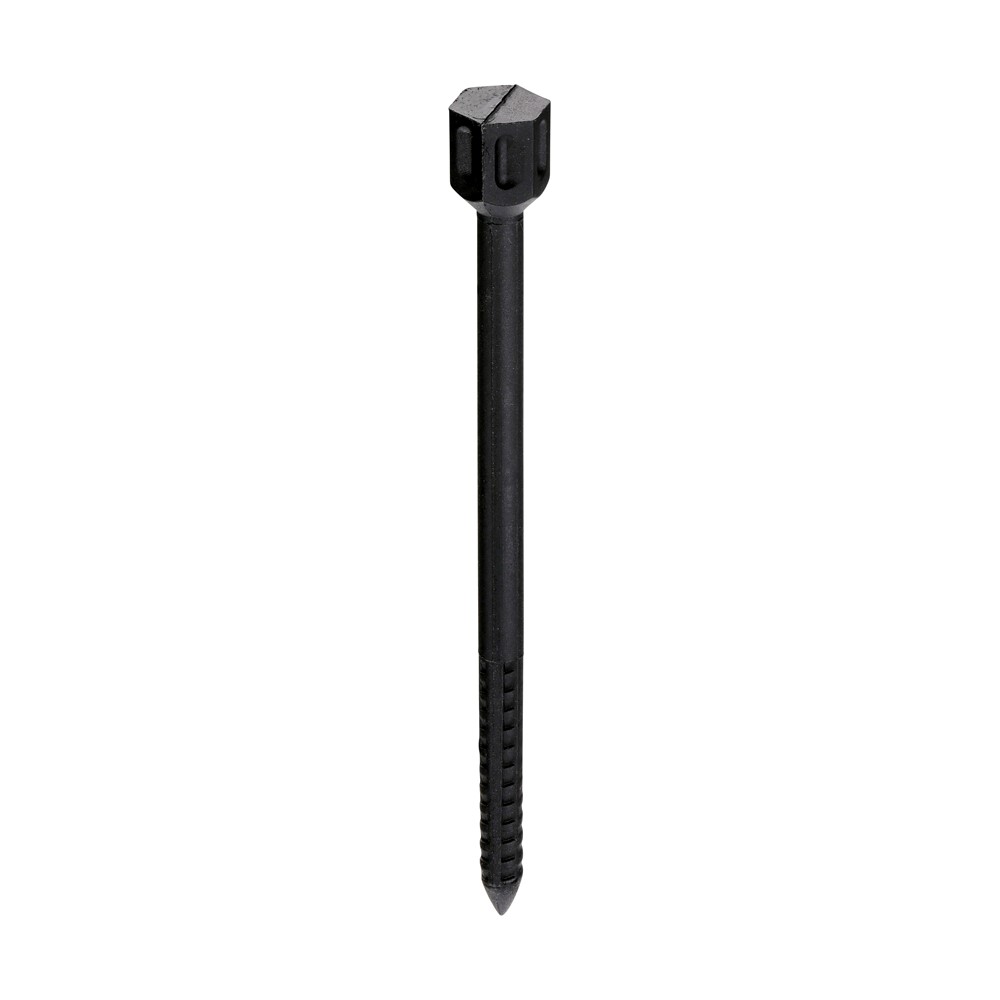

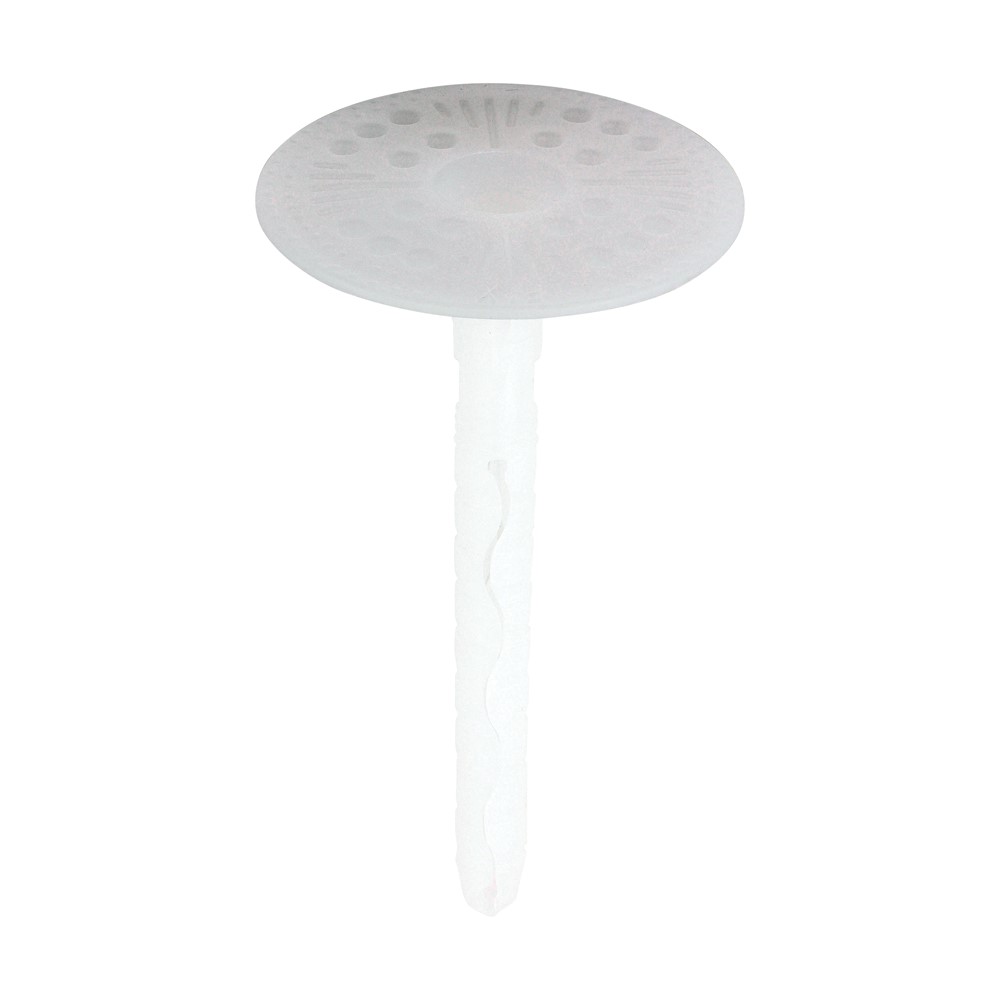

  • Polyamide (PA) drive pin and insulating sleeve balance dependable hold with reduced thermal bridging.
  • Controlled expansion geometry promotes consistent engagement in sound concrete, brick, and block substrates.
  • Dual anchoring zones (short/long) support differing site conditions while helping limit drilling time.
  • Broad plate head distributes pressure to help reduce localised indentation on rigid or laminated board skins.
  • Compatible with TDW110 insulation fixing washers where a wider bearing area is specified.
  • Positive head seating assists flush, repeatable set-down and tidy surface alignment.

Specifications

  • Length: 100mm
  • Diameter: 10.0mm
  • Material: Insulating Sleeve (Polymer), Polyamide (PA) Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete, Brick, Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Diameter: 60mm
  • Colour: White
  • Drill Hole Diameter: 10mm
  • Anchoring Zones: Short/Long
  • Product Code: PA100
  • Brand: TIMCO

Why Choose Ziel-Plast FIX-PA?

PA100 is a strong fit where speed and finish quality matter: it offers a straightforward hammer-in process, stable holding in solid masonry, and a low-profile head that helps keep the facade flat before finishing coats.



EAN Code: 5908275918288

  • Length mm: 100
  • Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete Brick Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Dia. mm: 60
  • Colour: White
  • Drill Hole Dia. mm: 10
  • Thread Dia. mm: 10
