PA120 FIX-PA Insulation Fixing 10.0 x 120mm
Mobile Menu Icon

FIX-PA Insulation Fixing 10.0 x 120mm

£16.33per Box £19.60 inc VAT
TIMCO Logo
Size

Size

Length

Qty:
- +
470 In Stock
Product Code: PA120
Brand: TIMCO

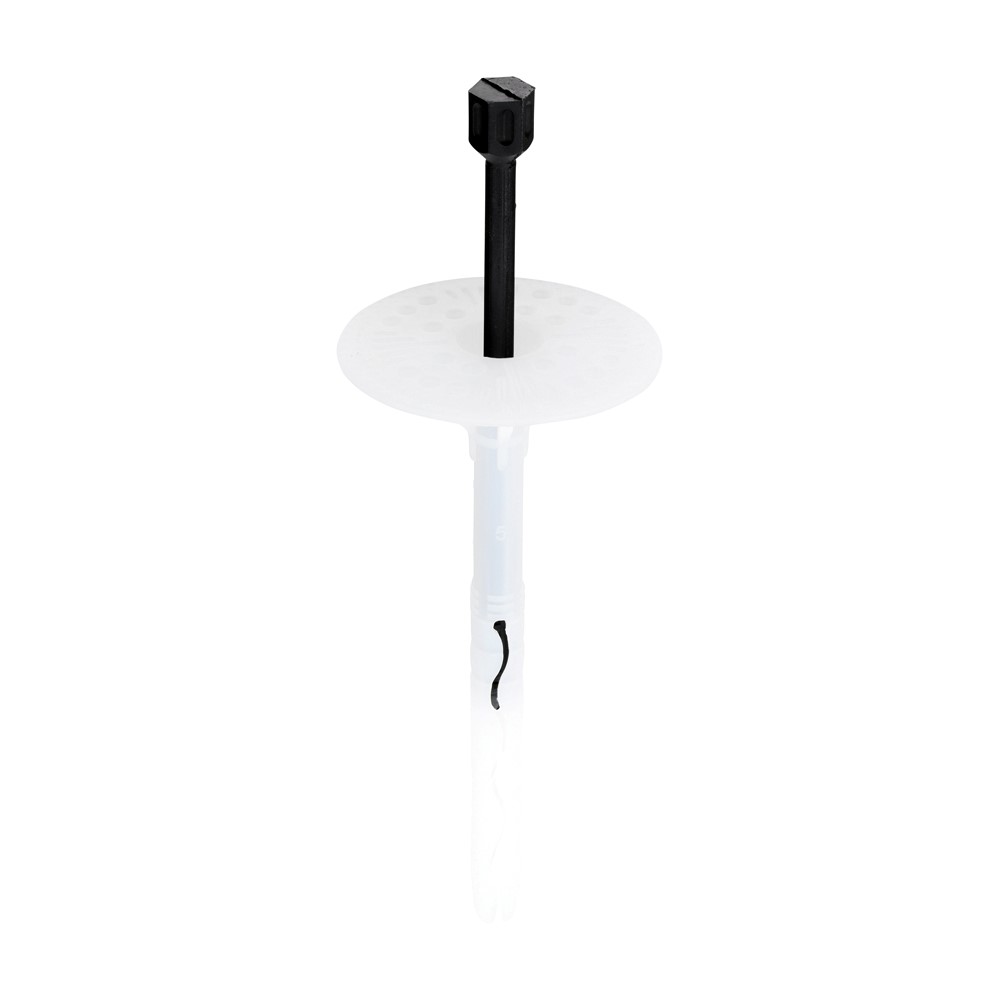

Ziel-Plast FIX-PA Insulation Fixing 120mm — Heavy-Duty ETICS Anchor

The Ziel-Plast FIX-PA Insulation Fixing 120mm from TIMCO offers a dependable, quick hammer-in solution for securing insulation boards to concrete and masonry. Its corrosion-resistant polyamide pin supports consistent fixing strength, while the low-profile head helps deliver a clean, render-ready surface on mid-thickness build-ups.

Product Overview

  • Geared for single-layer and light dual-layer systems where embedment and pace both matter.
  • Predictable hammer-in workflow with a defined head stop for repetitive grid layouts.
  • Low-profile plate head promotes neat alignment around edges, reveals, and corners.
  • Handles minor depth variances from adhesives and board tolerance to keep planes even.
  • Compatible with common ETICS fixing patterns and perimeter density adjustments.

Product Features

  • Polyamide (PA) pin and insulating sleeve combine reliable hold with reduced thermal bridging.
  • Controlled expansion supports engagement in sound concrete, brick, and block substrates.
  • Dual anchoring zones (short/long) allow setup flexibility while limiting drilling time.
  • Broad head spreads load to help reduce surface indentation on rigid board faces.
  • Pairs with TDW110 washers where a wider bearing area is specified by design.
  • Positive seating assists flush, repeatable set-down across panel fields.

Specifications

  • Length: 120mm
  • Diameter: 10.0mm
  • Material: Insulating Sleeve (Polymer), Polyamide (PA) Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete, Brick, Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Diameter: 60mm
  • Colour: White
  • Drill Hole Diameter: 10mm
  • Anchoring Zones: Short/Long
  • Product Code: PA120
  • Brand: TIMCO

Why Choose Ziel-Plast FIX-PA?

PA120 fits everyday facade layers where steady pace and clean finishes are required. It maintains embedment in solid wall materials and supports a flat surface ready for subsequent coatings.



EAN Code: 5908275918295

  • Length mm: 120
  • Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
  • Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
  • CE Standard: CE Marked
  • Substrates: Concrete Brick Block
  • Brand: Ziel-Plast
  • MOQ: 1
  • Pack Type: Box
  • Pack Quantity: 100
  • Head Dia. mm: 60
  • Colour: White
  • Drill Hole Dia. mm: 10
  • Thread Dia. mm: 10
