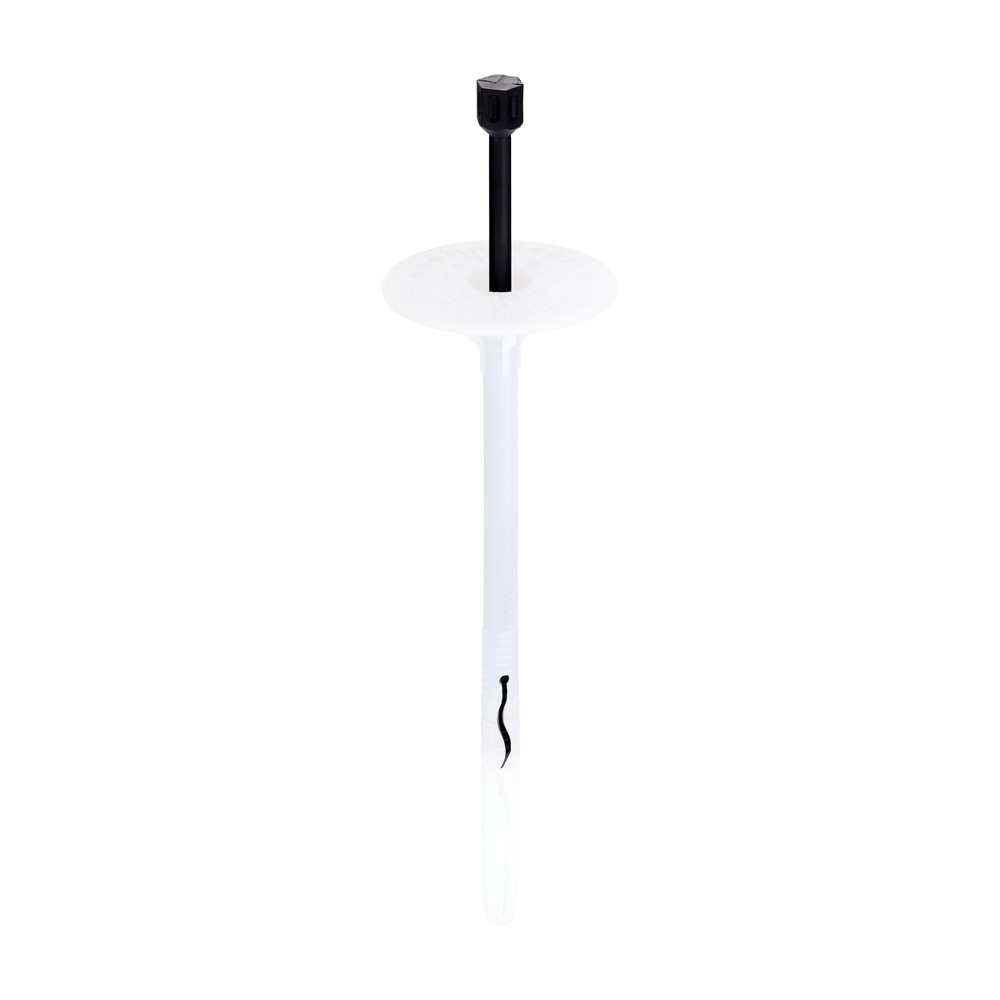

FIX-PA Insulation Fixing 10.0 x 180mm

Ziel-Plast FIX-PA Insulation Fixing 180mm — Heavy-Duty ETICS Anchor

For robust insulation depths, the Ziel-Plast FIX-PA Insulation Fixing 180mm by TIMCO offers dependable anchorage with a clean, low-profile finish. The PA pin resists corrosion and supports consistent hammer-in seating on demanding elevations.

Product Overview

• Suited to thicker boards and stepped zones where embedment must be preserved.
• Defined head stop aids a predictable rhythm on repetitive fixing grids.
• 60mm plate head supports a tidy plane near openings and corners.
• Handles moderate depth variance from adhesive beds and coatings.
• Integrates with ETICS patterns and perimeter density increases as specified.

Product Features

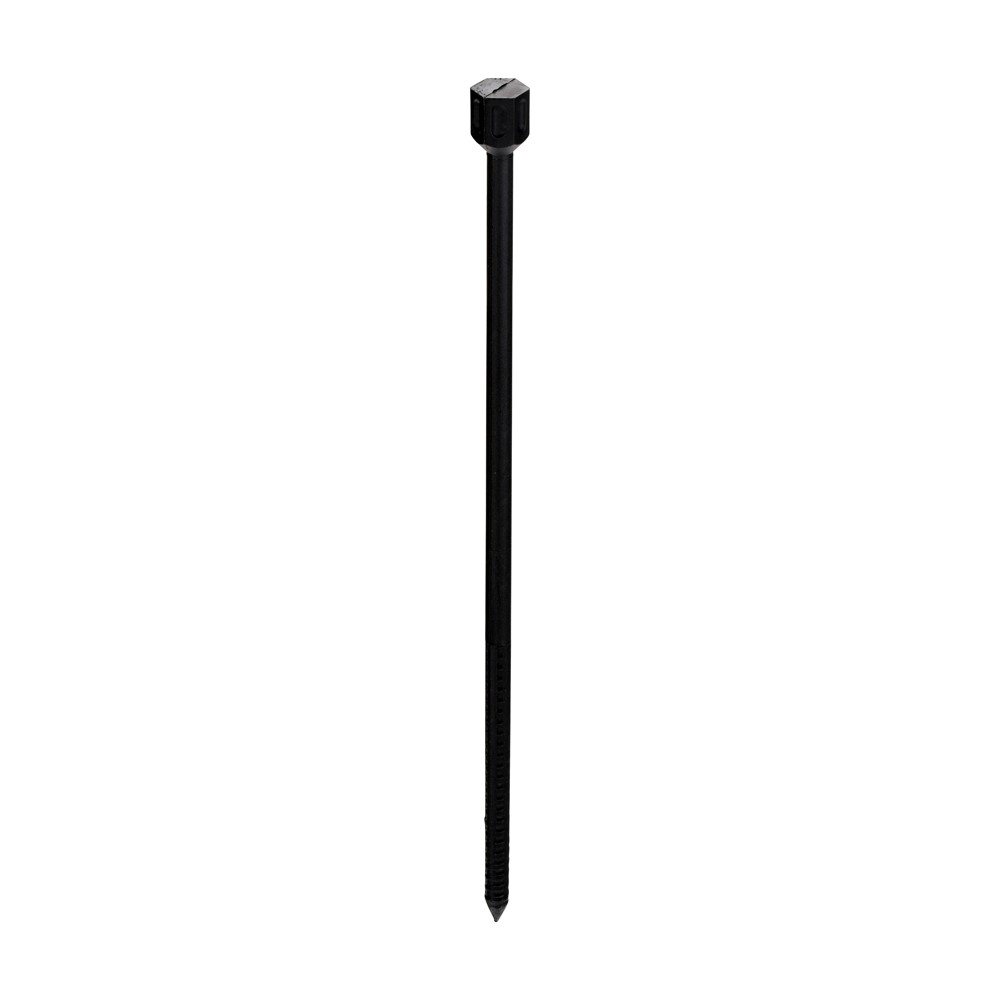

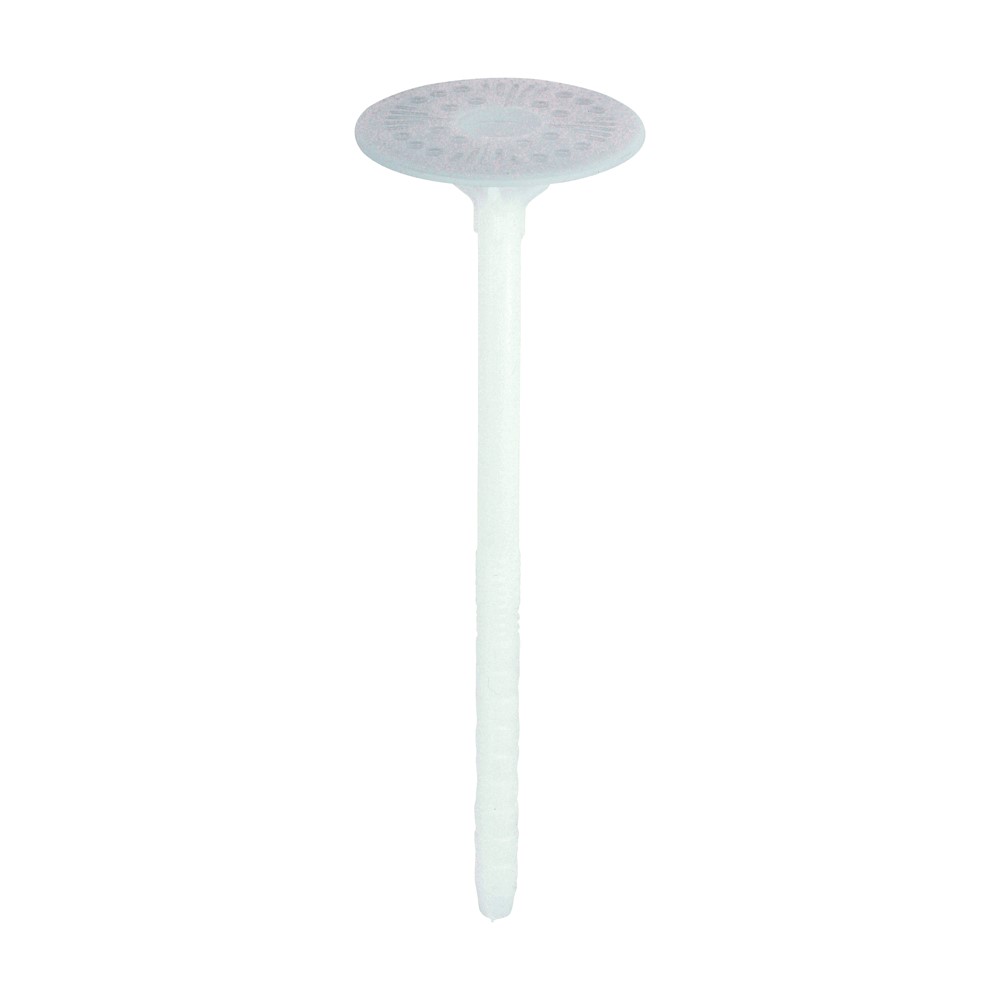

• Polyamide pin and insulating sleeve deliver stable hold with reduced thermal bridging.
• Expansion geometry promotes repeatable engagement in concrete, brick, and block.
• Short/long anchoring zones support varying site requirements.
• Broad head distributes pressure to help protect the board face.
• TDW110 washer compatible where a wider bearing area is required.
• Positive seating helps teams achieve a flush finish ahead of coatings.

Specifications

• Length: 180mm
• Diameter: 10.0mm
• Material: Insulating Sleeve (Polymer), Polyamide (PA) Pin
• Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
• CE Standard: CE Marked
• Substrates: Concrete, Brick, Block
• Brand: Ziel-Plast
• MOQ: 1
• Pack Type: Box
• Pack Quantity: 100
• Head Diameter: 60mm
• Colour: White
• Drill Hole Diameter: 10mm
• Anchoring Zones: Short/Long
• Product Code: PA180
• Brand: TIMCO

Why Choose Ziel-Plast FIX-PA?

PA180 supports deeper build-ups and stepped transitions while keeping surfaces neat—ideal where consistent embedment and a flat facade line are priorities.
