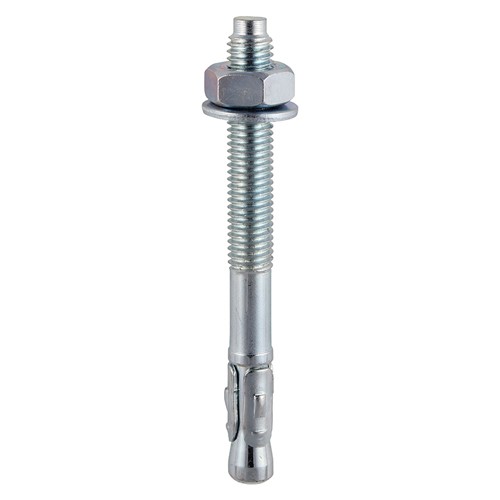

TIMCO Throughbolts - Zinc M8 x 50mm (100 Pack)

£22.31per BOX £18.59 ex VAT
RRP £35.86 TIMCO Logo
Qty:
- +
1 In Stock
Product Code: 0850TB
Brand: TIMCO

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

  • Chamfered head design to prevent damage to thread during installation
  • Zinc plated and passivated (3-5 microns)
  • Manufactured from cold formed carbon steel (grade 5.8)
  • Special expansion clip for rapid installation

EAN Code: 5055017560684

  • Length mm: 50
  • Material: Carbon Steel
  • Max Fixture Thickness mm: 5
  • Edge Distance mm: 55
  • Fixture Hole Diameter mm: 9.0
  • Drill Hole Dia. mm: 8.0
  • Finish: Zinc
  • Nut Socket Size mm: 13
  • Thread Dia. mm: M8
